Wholesale CNC Face And Cylindrical Grinding Machine

CNC Face And Cylindrical Grinding Machine

Basic Data Technical Data
GET A QUOTE
Basic Data

The CNC Face and Cylindrical Grinding Machine (commonly known as the CNC Angular Cylindrical Grinder) is purpose-built for high-precision operations where both the outer diameter (OD) and the adjacent shoulder face of a shaft must be ground simultaneously. By utilizing a fixed angular wheelhead configuration, the machine forces the grinding wheel to cross into both the cylindrical surface and the perpendicular face in a single linear feed stroke.

Core Advantages & Distinct Engineering
Simultaneous OD & Face Production: The angular wheelhead combines plunge grinding and face grinding into one single active stroke, preventing structural step-errors and reducing cycle times by up to 40%.

Absolute Perpendicularity Guarantee: Because the exterior cylinder and the thrust face are machined by the exact same grit-profile in one setting, the perpendicularity and runout between the face and diameter are mechanically locked to sub-micron limits.

Elimination of Axial Slip Errors: Equipped with specialized automated axial positioning probes (flagging systems) that measure the reference face before grinding, compensating for center-hole depth variations automatically.

High-Stiffness Hydrostatic Slideways: Heavy cross-axis loads caused by simultaneous radial and axial grinding forces are entirely absorbed by the hydrostatically supported bedways, extending dampening and tool life.

Primary Application Scenarios
This machine is highly specialized for stepped shafts that experience significant axial thrust forces during operation:

Power Transmission Components: Gearbox input/output shafts, pinion shafts, and spline shafts with prominent thrust faces.

Electric Motor Manufacturing: Rotor shafts requiring exact alignment between the bearing diameter and the laminations shoulder.

Compressor & Pump Parts: Precision crankshafts, eccentric shafts, and hydraulic rotor components.

Technical Data:

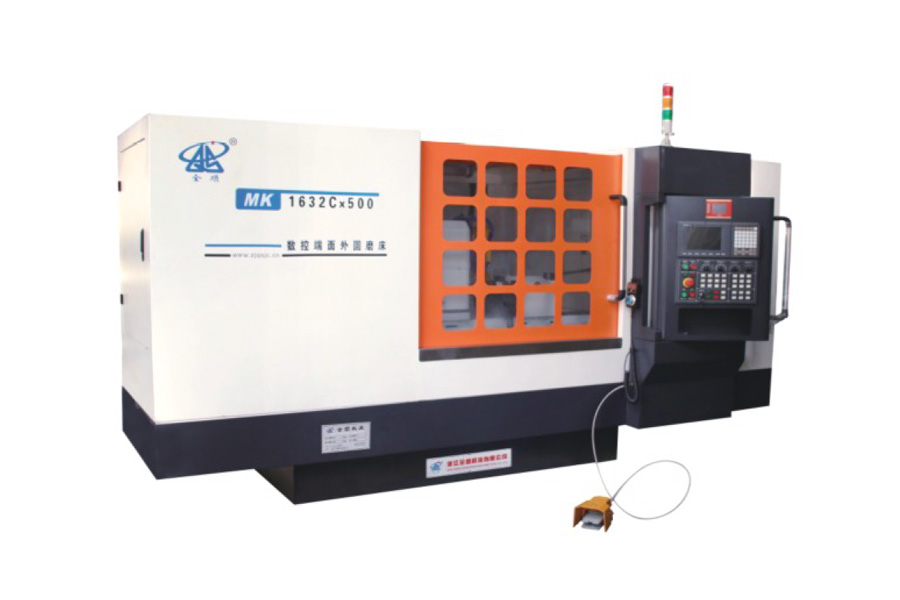

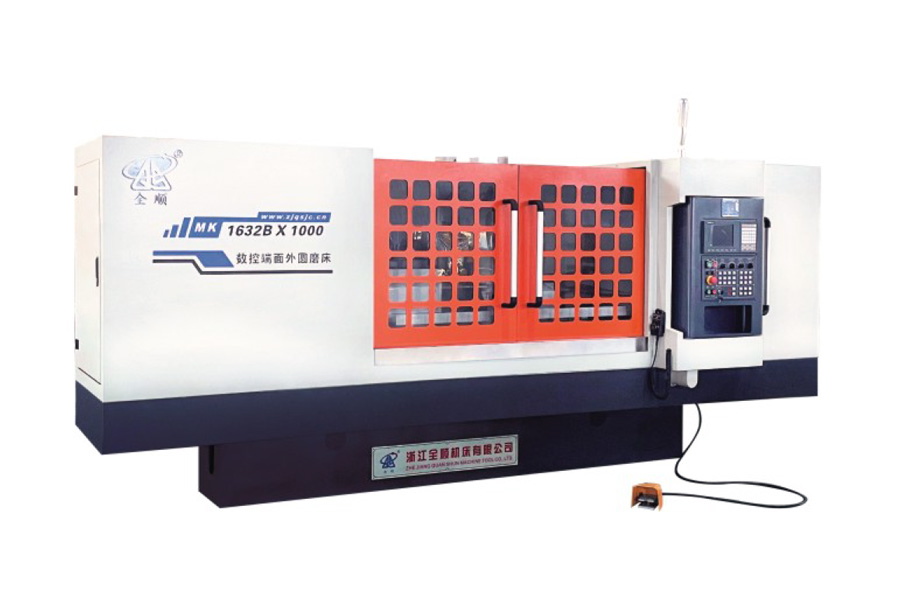

  • MK1632B
  • MKZ1632B
  • MK1632C

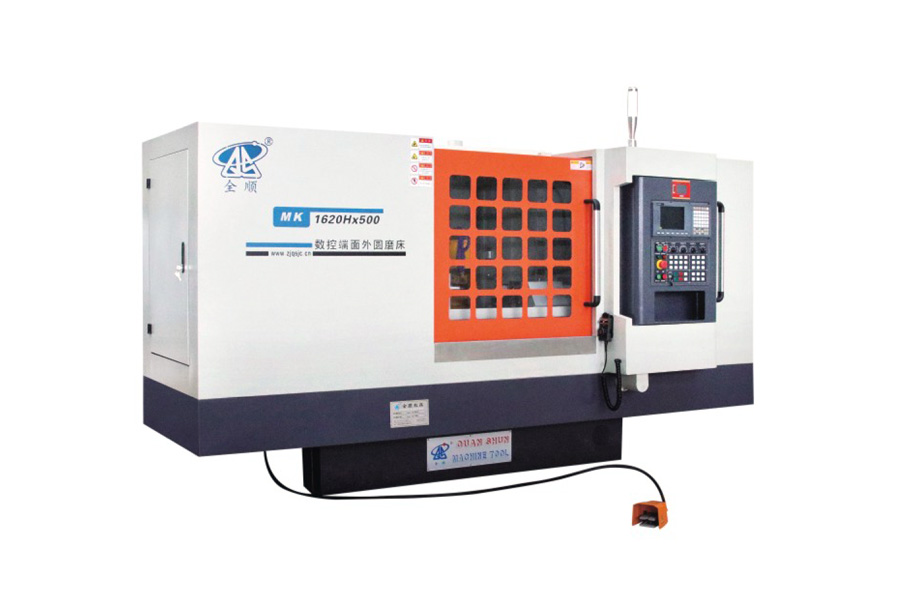

  • MK1620H

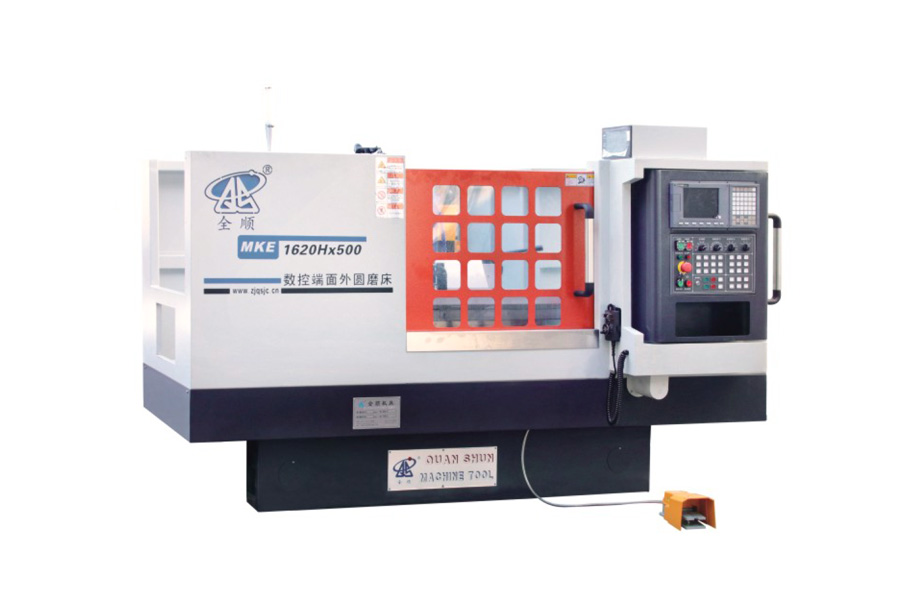

  • MKE1620H
  • MKZ1620H
