Wholesale High precision Compound Grinding Center

High precision Compound Grinding Center

Basic Data

The High Precision CNC Compound Grinding Center is an ultra-precision, multi-tasking manufacturing cell designed for intricate components with tight geometric tolerances. Featuring a direct-drive automatic indexing turret (B-axis) that houses up to four high-speed internal, external, and face grinding spindles, it executes complex ID, OD, taper, and profile grinding within a single automated chucking setup.

High-Precision Advantages
Frictionless Linear Motor Feed: X and Z axes utilize high-responsive linear motors on fully enclosed hydrostatic guideways, guaranteeing nanometer-level tracking and zero stick-slip vibration.

Hydrostatic B-Axis Turret: Spindle swapping takes less than a second, while the fluid-film clamping matrix locks the indexing repeatability to near-zero deviations.

Thermal Equilibrium Control: Active cooling loops regulate vital fluids and spindles to match environmental baselines within +/- 0.1 degrees C, completely preventing dimensional thermal drift.

Real-Time 3D Gauging: Integrated in-process touch probes actively measure diameters and lengths mid-cycle, feeding real-time sizing adjustments back to the CNC loop.

Key Application Sectors
Aerospace & Defense: Multi-step servo valve sleeves, guidance gyroscope shafts, and fuel injection nozzles.

Semiconductor Handling: High-precision ceramic vacuum chucks, quartz glass matrixes, and air bearing components.

High-End Tooling & Bearings: Machine tool spindle master collets, calibration gauges, and aerospace-grade spindle bearings.

Medical Technology: Micro-bore surgical tool housings and miniature high-speed pump rotors.

Technical Data:
  • MC600

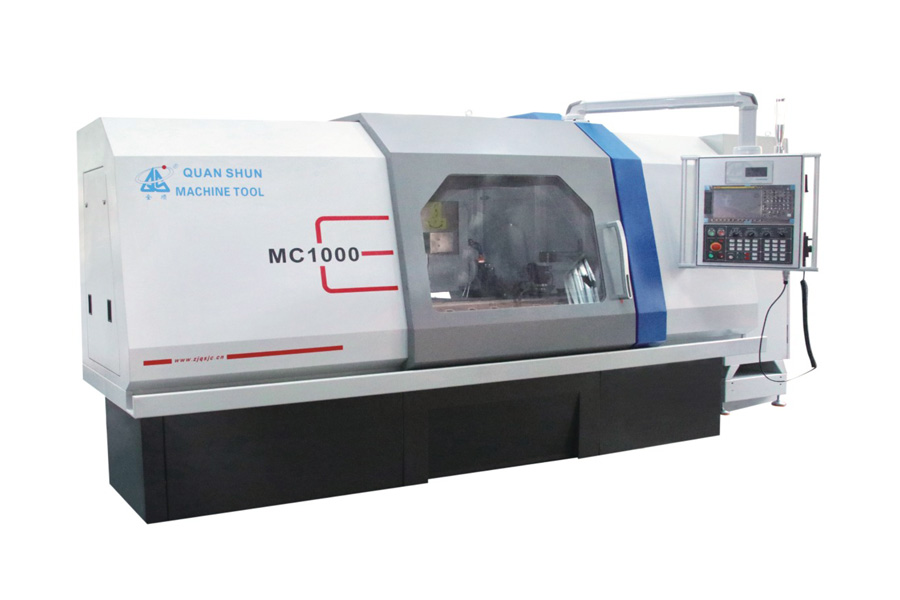

  • MC1000

Contact Us

Zhejiang Quanshun Machine Tool Co., Ltd.

Zhejiang Quanshun Machine Tool Co., Ltd.

Zhejiang Quanshun Machine Tool Co., Ltd. is a professional manufacturer of precision grinding machines. It is located in Zhuji, Zhejiang Province, the main economic development area of the Yangtze River Delta. It is 65km away from Hangzhou, 180km away from Shanghai, 60km away from Hangzhou International Airport, and 60km away from expressways such as Hangjinqu, Zhuyong, and Shaozhu, with convenient transportation and unique geographical location.

The company covers an area of 35000 square meters and a building area of 32000 square meters. Zhejiang Quanshun Machine Tool Co., Ltd. is a professional wholesale High precision Compound Grinding Center Manufacturers and High precision Compound Grinding Center Factory. It has a machine tool production base and a hydraulic parts production base. The main products are various specifications of ordinary (CNC) cylindrical grinding machines, CNC end face cylindrical grinding machines, automatic loading and unloading CNC (end face) cylindrical grinding machines, composite grinding machines,high-precision ordinary (CNC) cylindrical grinding machines, and we can design and develop various kinds of non-standard special grinding machines according to the needs of users and provide relevant technology, software, training services and automation solutions. Our company has complete product research and development capabilities, passed IS09001-2015 quality system and CE safety certifications, and was named "National High-tech Enterprise".In 2021, it was rated as a specialized and new small and medium-sized enterprise in Zhejiang Province. We also have self-export qualifications. Our company adheres to the concept of "quality first, reputation first, service first", so that our products have a good reputation in the market. At present, our products have been exported to more than 20 countries, such as the United States, Germany, Japan, and Southeast Asia.
